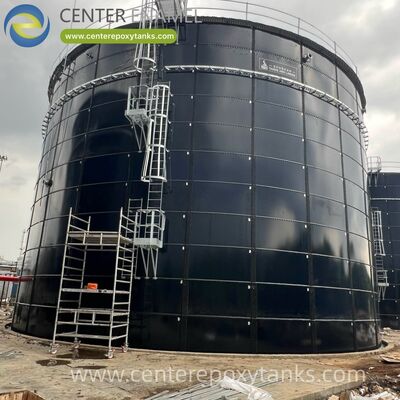

Bolted Steel Water Tanks as Condensate Recovery Tanks: Designed to handle warm return water for energy and resource recycling.

Bolted Steel Water Tanks as Condensate Recovery Tanks: Designed to handle warm return water for energy and resource recycling.

In the high-efficiency landscape of modern industrial thermal management, the steam cycle is the heartbeat of the facility. Condensate recovery tanks are the specialized vessels at the end of this cycle, designed to capture the high-purity, high-energy water that remains after steam has transferred its heat to a process. Rather than being discarded, this warm condensate is recycled back to the boiler. This process is essential for reducing energy consumption, as the water is already pre-heated, and for conserving expensive water treatment chemicals. However, storing condensate is uniquely challenging. The water is often returned at elevated temperatures and is "hungry"—being nearly pure, it is naturally aggressive and can rapidly corrode unprotected steel through a process known as oxygen pitting.

Traditional carbon steel tanks often fail prematurely in condensate service because standard liquid paints cannot withstand the combination of high temperature and the corrosive nature of ultra-pure water. Stainless steel is a common alternative but can be cost-prohibitive for large-scale recovery systems. To provide a durable and economical middle ground, the industrial thermal sector has standardized on Epoxy Coated Tanks, specifically Epoxy Bonded Steel Bolted Tanks. These vessels utilize a factory-applied, thermally stable barrier that is specifically engineered to survive the unique stresses of the steam return loop.

The Operational Demands of Thermal Resource Recovery

A condensate recovery tank must be engineered for high thermal stability and resistance to pure-water corrosion:

Resistance to Oxygen Pitting and Pure-Water Corrosion: Condensate is highly purified water that lacks minerals, making it naturally aggressive toward base metals. The Fusion Bonded Epoxy barrier provides a chemically inert interior that prevents the water from leaching ions from the steel, ensuring the tank remains corrosion-free.

Thermal Stability for Warm Water Return: Condensate is often returned at temperatures that would cause standard paints to soften or delaminate. The high-performance epoxy used in Epoxy Bonded Steel Bolted Tanks is cured at extreme temperatures, ensuring it remains molecularly stable during constant thermal cycling.

Preservation of Water Chemistry for Boiler Feed: Any contamination in the recovery tank will eventually reach the boiler, causing scaling or tube failure. The ultra-smooth, non-porous finish of the epoxy coating ensures that no rust flakes or coating residues enter the return loop.

Structural Safety for Dynamic Thermal Loads: As the tank fills and empties with warm water, the structure undergoes thermal expansion and contraction. The flexible bolted joint system, combined with high-tensile steel panels, is better suited to handle these stresses than rigid, field-welded alternatives.

Technical Excellence: The Fusion Bonded Epoxy Barrier

The reliability of a thermal recovery reservoir is rooted in the Fusion Bonded Epoxy (FBE) manufacturing process. Conducted entirely in a controlled factory environment, this process ensures a level of coating uniformity and bond strength that is superior to any field-applied paint.

The process begins with the precision preparation of high-strength steel panels. Each panel is grit-blasted to achieve a near-white finish, creating an ideal mechanical anchor profile. A specialized, high-temperature thermosetting epoxy powder is then electrostatically applied. The panels are cured in specialized ovens at extreme temperatures, causing the epoxy to melt, flow, and undergo a chemical cross-linking reaction, molecularly fusing it to the steel substrate.

This results in a dense, uniform, and incredibly tough barrier. Because the panels are coated before assembly, every edge and pre-punched bolt hole is fully encapsulated. On-site, these panels are joined using specialized high-strength fasteners and industrial-grade sealants, creating a structure that is immune to the atmospheric and thermal stresses of the recovery cycle.

Maximizing Efficiency with Aluminum Dome Roofs

In condensate management, the roof is critical for preventing thermal loss and protecting the high-purity water from external environmental debris. This is why the integration of Aluminum Dome Roofs has become a strategic standard:

Thermal Retention and Vapor Containment: Condensate is valuable because of its heat. Aluminum Dome Roofs provide a secure, gas-tight seal that helps contain steam vapors and maintain the internal temperature, maximizing energy recovery.

Maintenance-Free Performance in High-Humidity Zones: The area around a condensate tank is often humid due to steam vents. While a steel roof would require constant repainting to prevent rust, aluminum is naturally resistant to corrosion, providing a maintenance-free cover.

Lightweight Geodesic Design for Rooftop Installations: Condensate tanks are often located on the roofs of boiler houses to allow for gravity return. The geodesic design provides immense structural strength with minimal weight, reducing the load on the building's structural steel.

Prevention of External Contamination: The dome provides a secure seal that prevents dust, organic debris, and rainwater from entering the high-purity supply—critical for protecting the downstream boiler from contamination.

Rapid Deployment and Modular Scalability

For a manufacturing plant undergoing a thermal efficiency upgrade, the speed of installation is a major advantage. Because the components are prefabricated, the on-site assembly of an Epoxy Bonded Steel Bolted Tank is fast and efficient, requiring no on-site welding—a critical benefit in "no-spark" industrial zones.

Furthermore, the modular nature of the system allows for future flexibility. If a factory increases its steam capacity and requires a larger recovery reserve, these tanks can often be heightened by adding more rings of panels. This modularity ensures that the initial infrastructure investment remains a long-term asset that can evolve with the facility's energy targets.

Project Cases: Proven Performance in Industrial Infrastructure

The following non-fictitious projects highlight the successful implementation of our Epoxy Coated Tanks in demanding industrial and municipal environments:

Saudi Municipal Sewage and Industrial Waste Project: Operating in extreme temperatures, this project required tanks that could resist external environmental stress. The facility utilized 5 units of tanks, ensuring a secure and corrosion-free solution.

Sichuan Chengdu Wastewater Treatment Plant Project: This high-capacity project utilized 16 units of tanks to manage massive volumes of processed liquids. It serves as a testament to the structural stability and modular efficiency required for modern industrial-scale liquid management.

Hebei Municipal Water and Sewage Infrastructure Project: This project utilized a high-integrity bolted tank to support regional water distribution and industrial safety. The installation included 1 unit of tank, providing a reliable and low-maintenance solution for essential services.

Conclusion: A High-Efficiency Standard for Thermal Recovery

The effective management of condensate recovery requires infrastructure engineered for thermal stability, water purity, and structural longevity. The Epoxy Bonded Steel Bolted Tank represents the most advanced solution for the modern industrial and thermal sectors.

By providing a factory-fused barrier that resists internal oxidation and by incorporating the advanced protection of Aluminum Dome Roofs, these tanks ensure that thermal assets are managed with absolute security. They offer a high-strength, low-maintenance, and scalable solution that supports the continued energy efficiency of factories globally.
